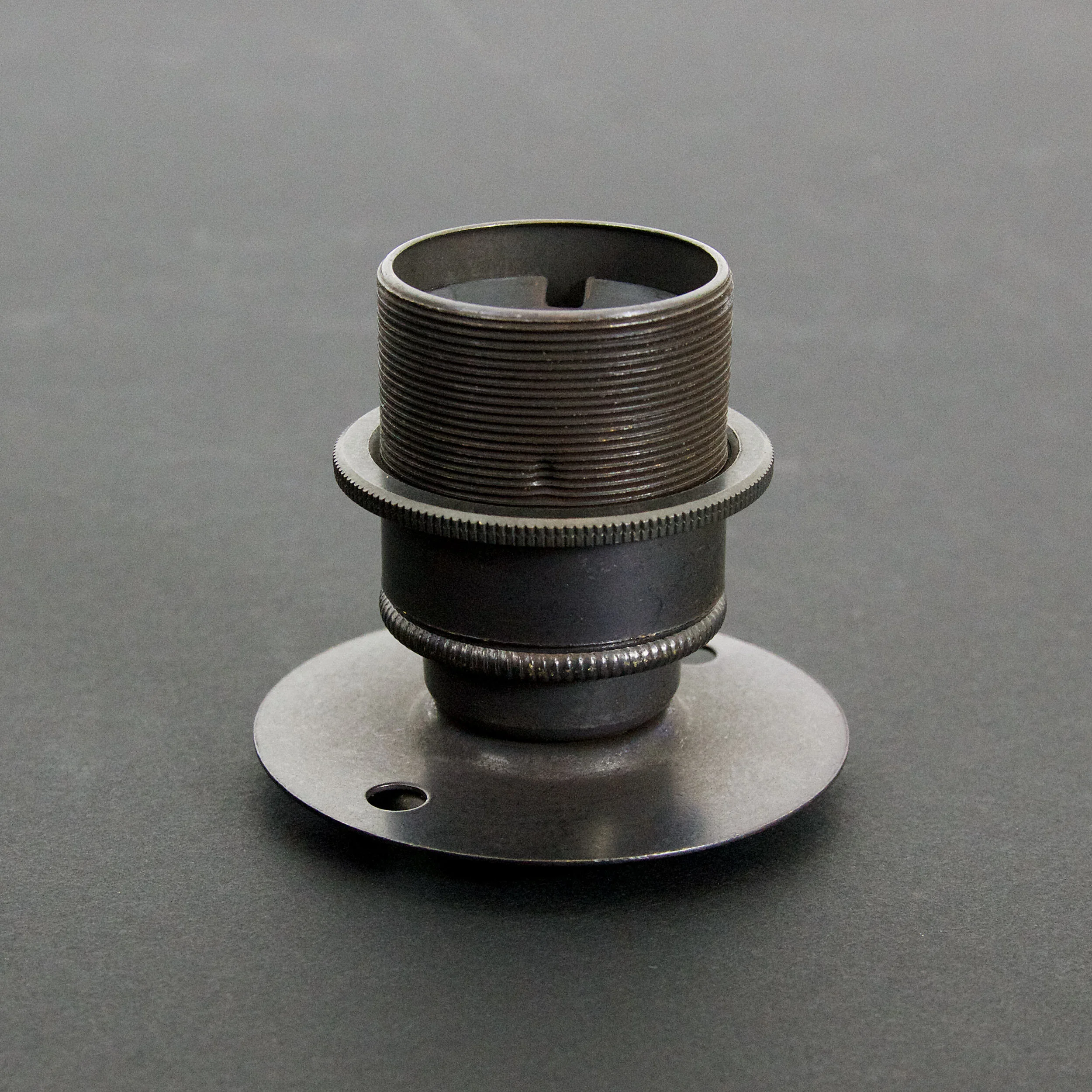

Batten Holder Bronze E27 Edison Screw
Batten Holder Bronze E27 Edison Screw
Our solid brass European made E27 batten holder style lampholder is a precision-machined premium fitting.
The traditional vintage-style bronze plating is the perfect aesthetic for your vintage industrial-themed space. This fitting can be directly hardwired and lets the globes sit very close to the surface, making it perfect for small spaces or where the lighting fixtures cant be too intrusive. Internally, there’s a high-quality ceramic insert to terminate your active, neutral and earth wires into.
Our batten holder mounting holes suit our range of No.12 screws and ¼” lag bolts which can be purchased separately. See below for details. This listing is for the batten holder only.
Our brass lamp holders are compliant to AS/NZ standards, RoHS compliant and also hold approval for European markets.
IEC 60238:2004 +A1:2008 +A2:2011
AS/NZS 60238:2007
AS/NZS 60238:2015 + A1
RoHS 2011/65/EU
CE approvals for European markets
Specifications:
Maximum Input Voltage: 250VAC
Maximum Rated Current: 4A
Earth Cable Required: Yes
Temperature Classification: T170
Materials: Brass, ceramic
Base Type: Edison Screw, ES, E27
Maximum Static Load: 5kgs
Height: 55mm
Diameter: 67mm
Mounting Hole Centres: 51mm
Globe not included
Screws sold separately
Screw Options:
If you are mounting into a stud, we suggest our round head screw or lag bolt options:
https://littleanvil.com/nuts-bolts-screws/screw-wood-round-slotted-steel-black-oxide
https://littleanvil.com/nuts-bolts-screws/bolt-lag-square-steel-black-oxide
Little Anvil industrial batten holder mounting holes suit our #12 screws and ¼" lag bolts. We recommend using a ¼" rub washer in conjunction with the lag bolts to prevent any scoring on the surface of the brass whilst tightening.
https://littleanvil.com/nuts-bolts-screws/washer-flat-steel-black-oxide
For the wall fixture, we'd suggest at least a 2" screw. For locating your shelving, the screw length will be dependant on your shelf thickness. If you are mounting the brackets onto masonry such as brick, concrete or block - we supply blackened head Dynabolts that can be found here:
https://littleanvil.com/nuts-bolts-screws/dynabolt-blackened-head
