Industrial Steel Shelf Bracket No.1

Industrial Steel Shelf Bracket No.1

from A$22.50

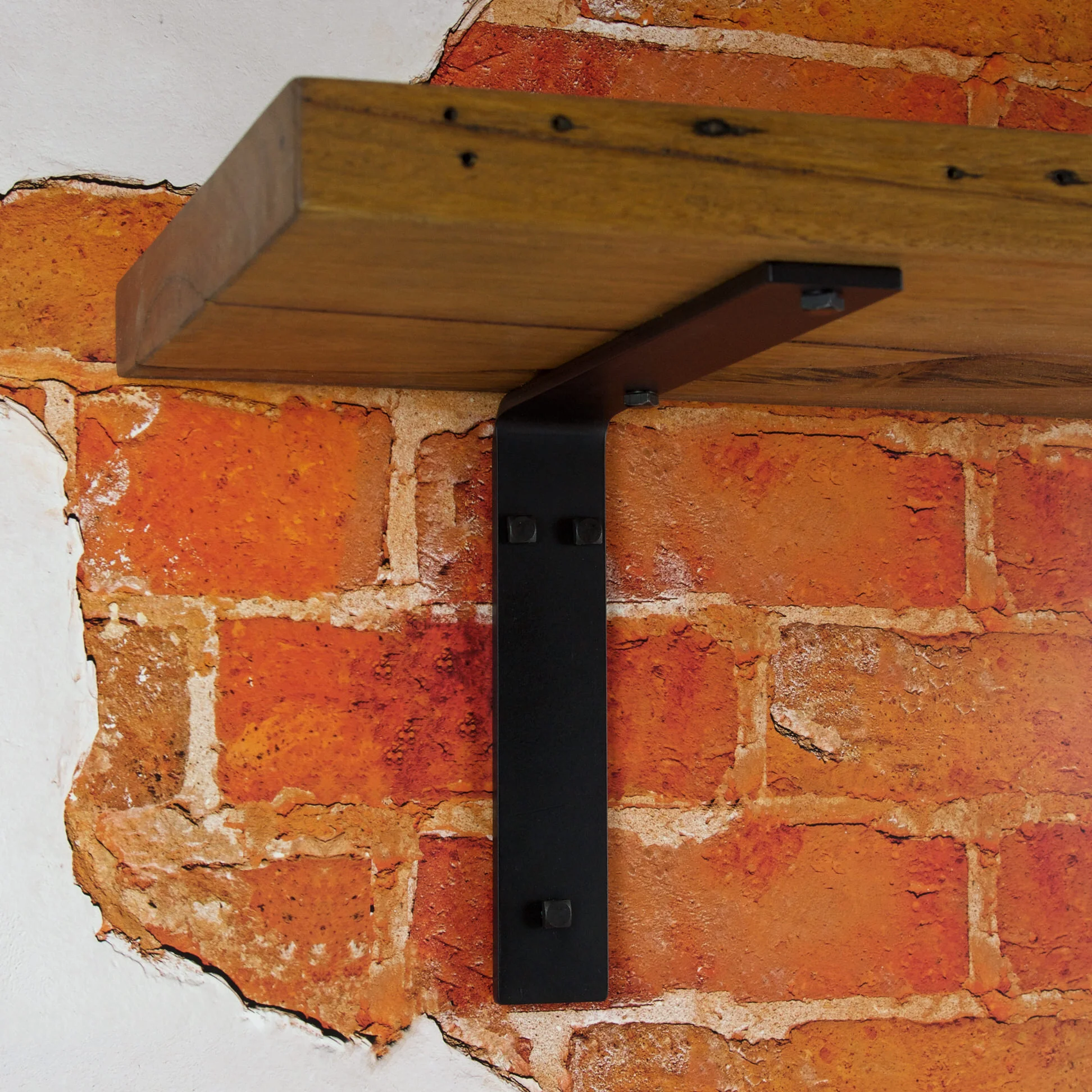

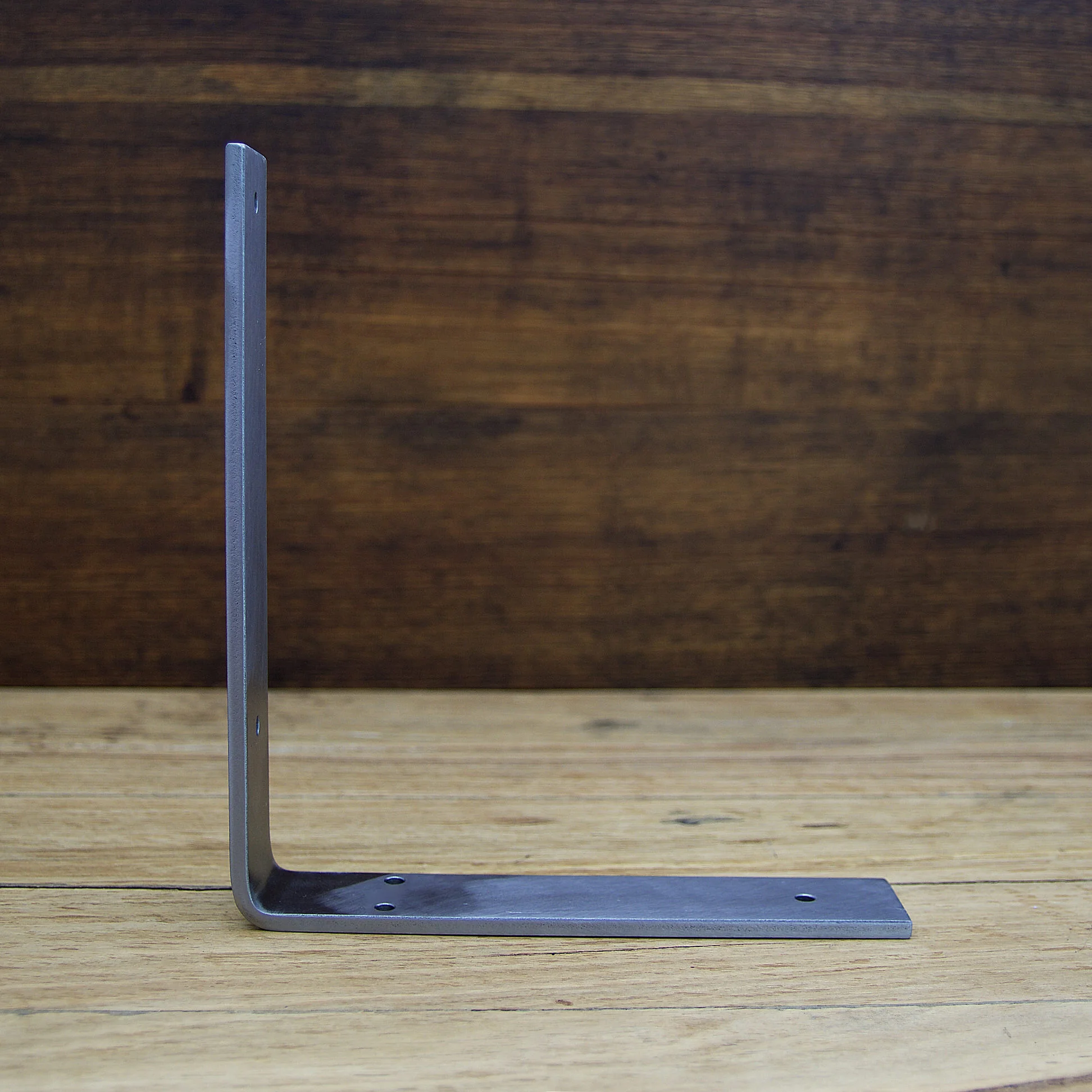

This vintage-style industrial heavy-duty shelf bracket is a throwback to the times when products were over-engineered and built to last. Our hand-fabricated brackets are made from 6mm / 0.25” hot rolled mild steel and are designed to sustain a large amount of weight with no brace or gusset.

This shape provides no obstruction or intrusion to the shelf below, maximizing space and minimizing the aesthetic.

Our love of old-style steel industrial structures and equipment is shown in this item. We aimed to design a product that wouldn't be out of place on a turn-of-the-century railroad or steel girder bridge.

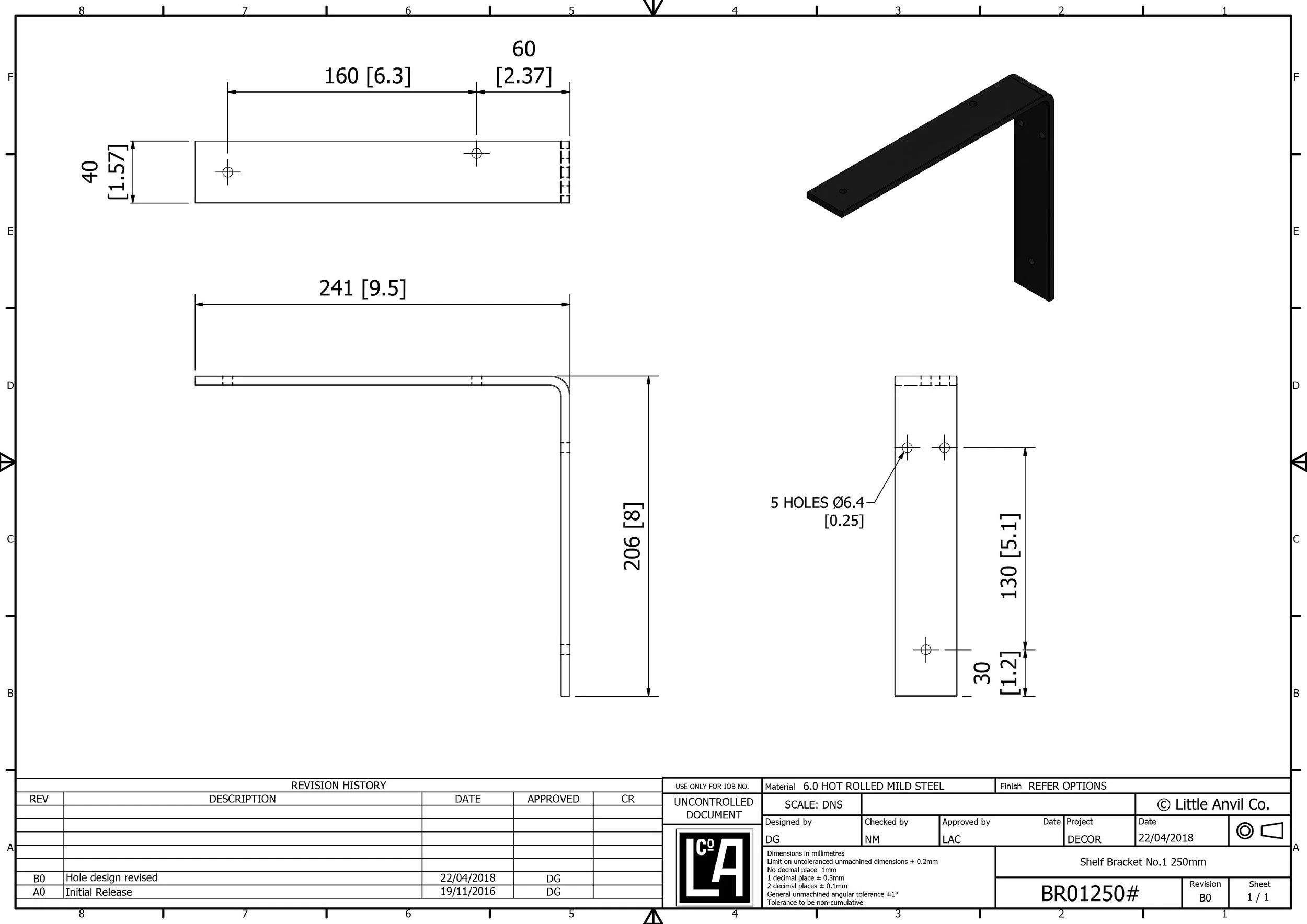

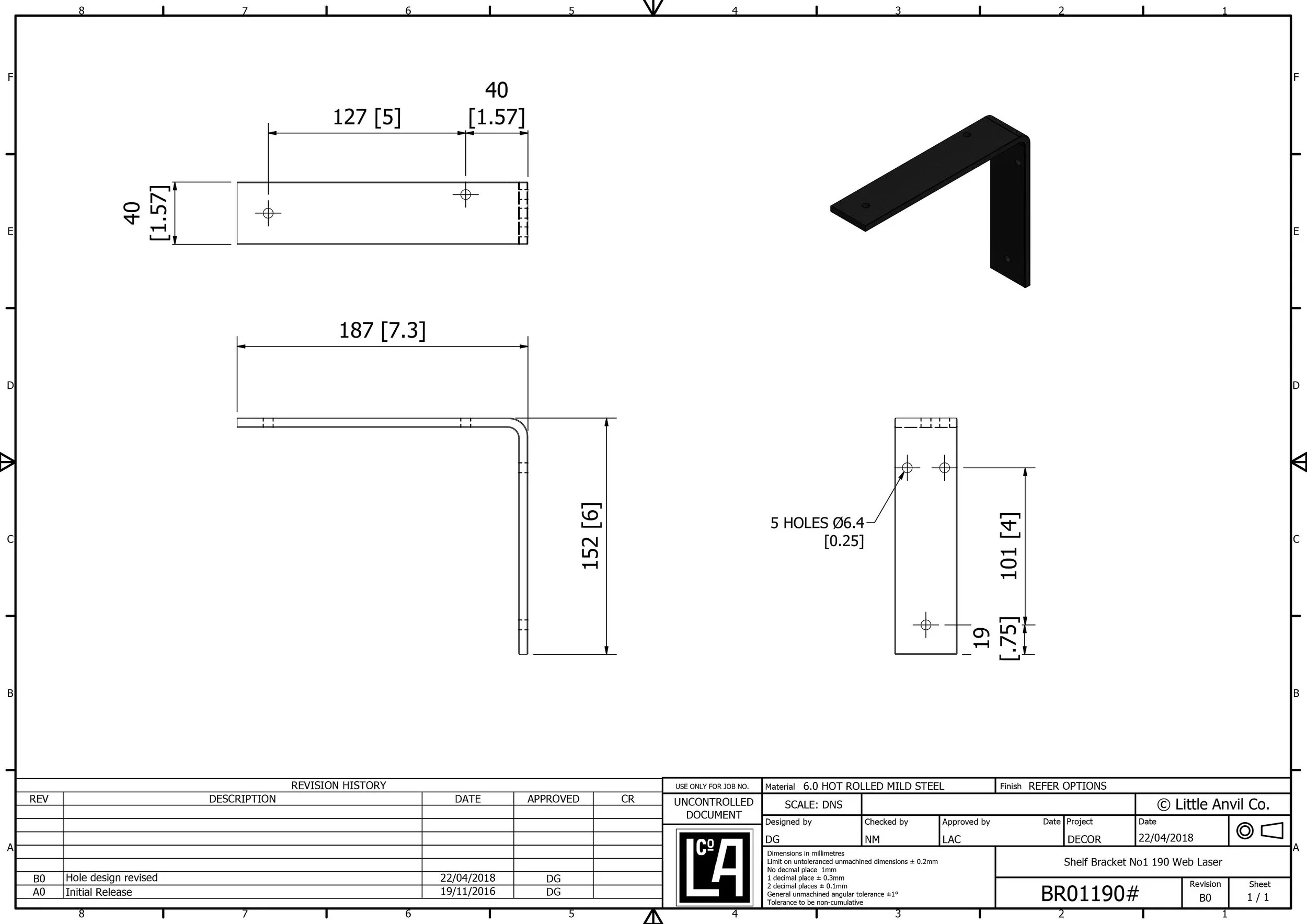

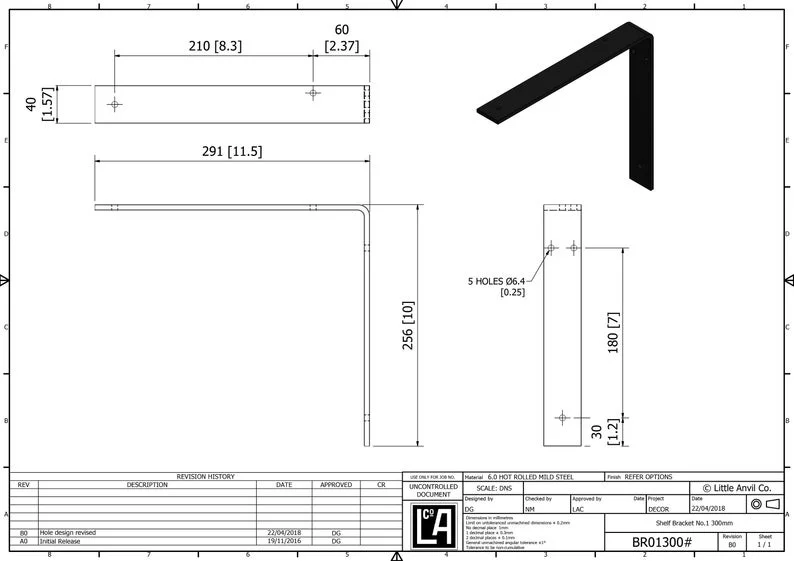

These brackets have been tested with a static weight of up to 20kg each. Three standard sizes are available to suit shelf depths of 190mm, 250mm, and 300mm.

When you need your shelf to be able to take a large amount of weight and want to be confident that the bracket isn't going to fail, use this one.

Shelf Depth & Finish:
Quantity:
Add To Cart

Specifications:

Material: 6mm hot rolled mild steel.
Static Weight: 20kg+ each.
Recommended shelf depth: 190mm, 250mm & 300mm.
Fixing hardware not supplied.

Finish Specifications:

Matte Black Powdercoat.

Screw Options:

We supply a range of decorative traditional-style black oxide screws and bolts to complement our industrial steel shelf brackets. Traditional bolts had square heads instead of hexagonal heads, whilst the screws had slotted heads instead of the modern Phillips' head.

If you are mounting into a stud or using a suitable wall plug, we suggest the round head screw or lag bolt options:

https://littleanvil.com/nuts-bolts-screws/screw-wood-round-slotted-steel-black-oxide
https://littleanvil.com/nuts-bolts-screws/bolt-lag-square-steel-black-oxide

Little Anvil industrial steel bracket mounting holes suit our #12 screws and ¼" lag bolts. We recommend using a ¼" rub washer in conjunction with the lag bolts.

https://littleanvil.com/nuts-bolts-screws/washer-rub-shim-black-oxide

For the wall fixture, we'd suggest at least a 2" screw. For locating your shelving, the screw length will be dependent on your shelf thickness. If you are mounting the brackets onto masonry such as brick, concrete, or block - we supply blackened head Dynabolts that can be found here:

https://littleanvil.com/nuts-bolts-screws/dynabolt-blackened-head

Make installation of your lag bolts, pyramid head door screws, and square head machine bolts easier and safer with our 8-point sockets.

https://littleanvil.com/nuts-bolts-screws/8-point-socket
