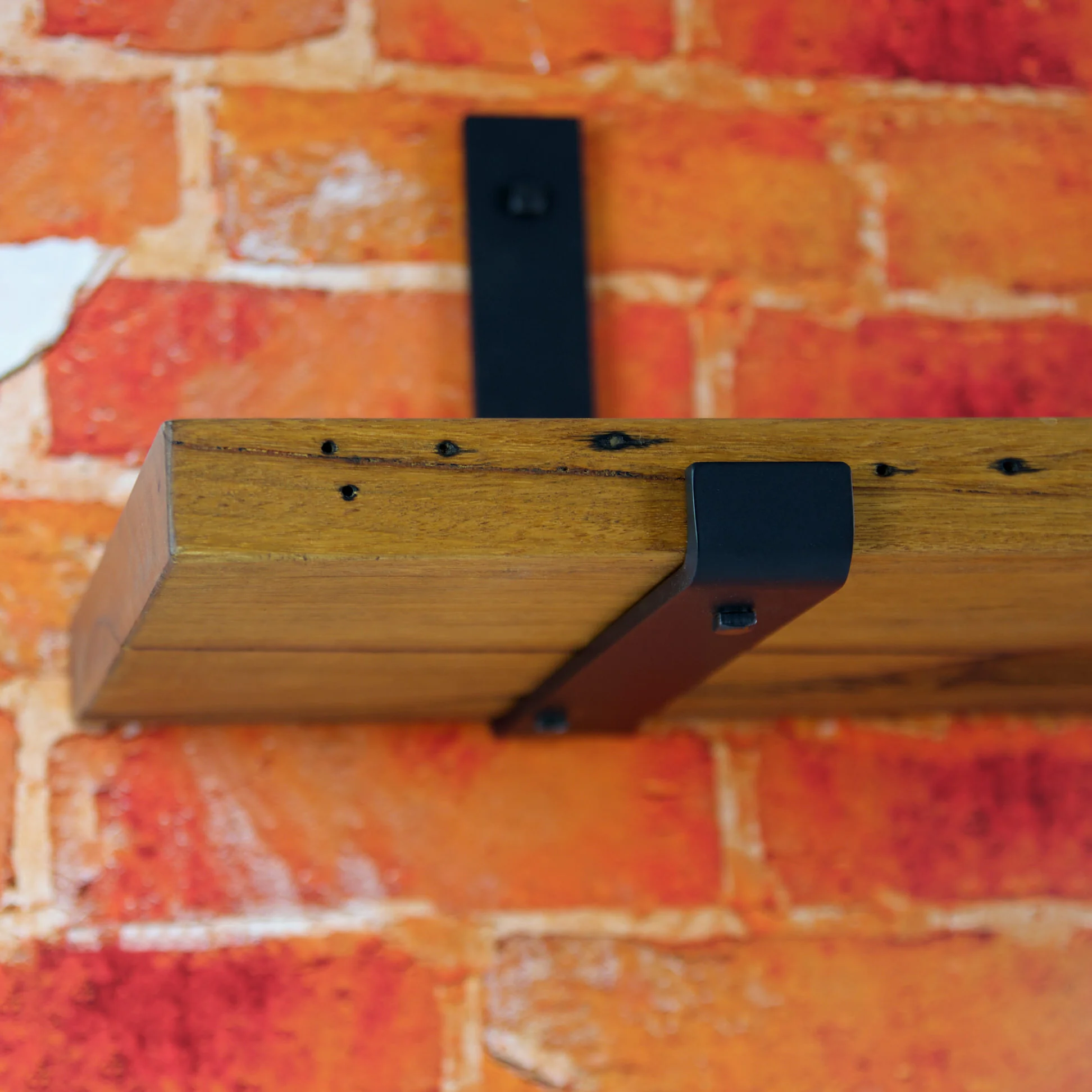

Shelf Bracket No8 Upturned U With Lip Ultra Heavy Duty Matte Black Steel Wood Lumber Timber Shelf Brick Wall Main
Shelf Bracket No8 Upturned U With Lip Ultra Heavy Duty Matte Black Steel Wood Lumber Timber Shelf Brick Wall
Industrial Steel Shelf Bracket No.8 Customisable Depth Dimensional Drawing
Industrial Steel Shelf Bracket No.8 Customisable Depth Dimensional Drawing
Industrial Steel Shelf Bracket No.8 Customisable Depth Dimensional Drawing
Industrial Steel Shelf Bracket No.8 Customisable Depth
Steel Finish Options | Raw Steel | Matte Black | Heat Blackened | Antiqued & Sealed | Little Anvil
Shelf Bracket No8 Upturned U With Lip Ultra Heavy Duty Matte Black Steel Wood Lumber Timber Shelf Brick Wall Main
Shelf Bracket No8 Upturned U With Lip Ultra Heavy Duty Matte Black Steel Wood Lumber Timber Shelf Brick Wall
Industrial Steel Shelf Bracket No.8 Customisable Depth Dimensional Drawing
Industrial Steel Shelf Bracket No.8 Customisable Depth Dimensional Drawing
Industrial Steel Shelf Bracket No.8 Customisable Depth Dimensional Drawing

Industrial Steel Shelf Bracket No.8 | Customisable Depth

from 23.60

Product Description

This vintage style industrial heavy duty shelf bracket is a predefined, customisable version of our No.8 bracket. Due to the popularity of custom bracket requests, we have developed an easier method to specify and purchase them. This also makes our production process more efficient, thereby keeping prices down.

Specify a shelf depth ranging from 144mm (5 3/4") to 344mm (13 1/2"), and in 4 different finishes. We will automatically add clearance between the shelf and front lip for you. There are 3 different vertical heights used across this range. Please refer to the drawings for more detail. If you want to specify an exact shelf depth that's not listed, choose the next size above and leave us a note of your dimension requirements.

This vintage style industrial heavy duty shelf bracket is a throwback to the times when products were over-engineered and built to last. Our hand-fabricated brackets are made from 6mm / 0.25” hot rolled mild steel and are designed to sustain large amounts of weight with no brace or gusset. This shape provides no obstruction or intrusion to the shelf below, maximising space and minimising the aesthetic.

Our love of old-style steel industrial structures and equipment is shown in this item. We aimed to design a product that wouldn't be out of place on a turn of the century railroad or steel girder bridge. These brackets have been tested with a static weight up to 20kg each.

When you need your shelf to be able to take a large amount of weight and want to be confident that the bracket isn't going to fail, use this one.

**PLEASE NOTE** - our raw steel option is completely unfinished steel. There may be surface rust, oil, scale and the look may vary from the image. These brackets are designed for you to finish yourself. The antiqued and sealed option may vary from the photo - we have tried to show the difference in potential colour tones in the image provided.

Select the depth range your shelving falls into and a finish below. You will be prompted to input specific sizing based on those choices once the product has been added to your cart.

Shelf Depth Range:
Finish:
Quantity:
Add To Cart

Specifications:

Material: 6mm hot rolled mild steel.
Static Weight: ~20kg each.
Shelf Depth Range: 144mm (5 3/4") to 344mm (13 1/2").
Fixing hardware not supplied.
Handmade in Australia.

Finish Specifications:

Antiqued & Sealed - Penetrol - finish varies.
Heat Blackened with Linseed Oil.
Matte Black.
Raw Steel - untreated - finish varies.

Screw Options:

We supply a range of decorative traditional style black oxide screws and bolts to complement our industrial steel shelf brackets. Traditional bolts had square heads instead of hexagonal heads, whilst the screws had slotted heads instead of the modern Phillips' head.

If you are mounting into a stud or using a suitable wall plug, we suggest the round head screw, countersunk screw or lag bolt options:

https://littleanvil.com/nuts-bolts-screws/screw-wood-round-slotted-steel-black-oxide
https://littleanvil.com/nuts-bolts-screws/screw-wood-oval-countersunk-slotted-steel-black-oxide
https://littleanvil.com/nuts-bolts-screws/bolt-lag-square-steel-black-oxide

Little Anvil industrial steel bracket mounting holes suit our #12 screws and ¼" lag bolts. We recommend using a ¼" rub washer in conjunction with the lag bolts.

https://littleanvil.com/washers/washer-flat-steel-black-oxide

For the wall fixture, we'd suggest at least a 2" screw. For locating your shelving, the screw length will be dependant on your shelf thickness. If you are mounting the brackets onto masonry such as brick, concrete or block - we supply blackened head Dynabolts for both countersunk and non-countersunk holes that can be found here:

https://littleanvil.com/nuts-bolts-screws/dynabolt-blackened-head

Make installation of your lag bolts, pyramid head door screws and square head machine bolts easier and safer with our 8-point sockets.

https://littleanvil.com/nuts-bolts-screws/8-point-socket
