Industrial Steel Shelf Bracket No.2 | Customisable Depth

from 36.80

Product Description

This vintage style industrial heavy duty shelf bracket is a predefined, customisable version of our No.2 bracket. Due to the popularity of custom bracket requests, we have developed an easier method to specify and purchase them. This also makes our production process more efficient, thereby keeping prices down.

Specify a bracket depth ranging from 140mm (5 1/2") to 340mm (13 1/2"), and in 3 different finishes. Simply subtract the overhang you require from your shelf to the front edge of the bracket to determine the bracket depth. There are 3 different vertical heights used across this range. Please refer to the drawings for more detail. If you want to specify an exact bracket depth that's not listed, choose the next size above and leave us a note of your dimension requirements.

This vintage style industrial ultra heavy duty shelf bracket is a throwback to the times when products were over-engineered and built to last. Our hand-fabricated brackets are made from 6mm / 0.25” hot rolled mild steel and are designed to sustain large amounts of weight using a gusset. The pre-drilled holes have been offset to allow easy wall and shelf installation. Our brace won't get in the way of your drill.

Our love of old-style steel industrial structures and equipment is shown in this item. We aimed to design a product that wouldn't be out of place on a turn of the century railroad or steel girder bridge. These brackets have been tested with a static weight up to 40kg each but would be happy being pushed much further if you can find a wall anchor strong enough.

When you need your shelf to be able to take an ultra-large amount of weight and want to be confident that the bracket isn't going to fail, use this one.

Select the depth range your bracket falls into and a finish below. You will be prompted to input specific sizing based on those choices once the product has been added to your cart.

Bracket Depth Range:
Finish:
Quantity:
Add To Cart

Specifications:

Material: 6mm hot rolled mild steel.
Static Weight: 40kg+ each.
Shelf Bracket Range: 140mm (5 1/2") to 340mm (13 1/2")
Fixing hardware not supplied.
Handmade in Australia.

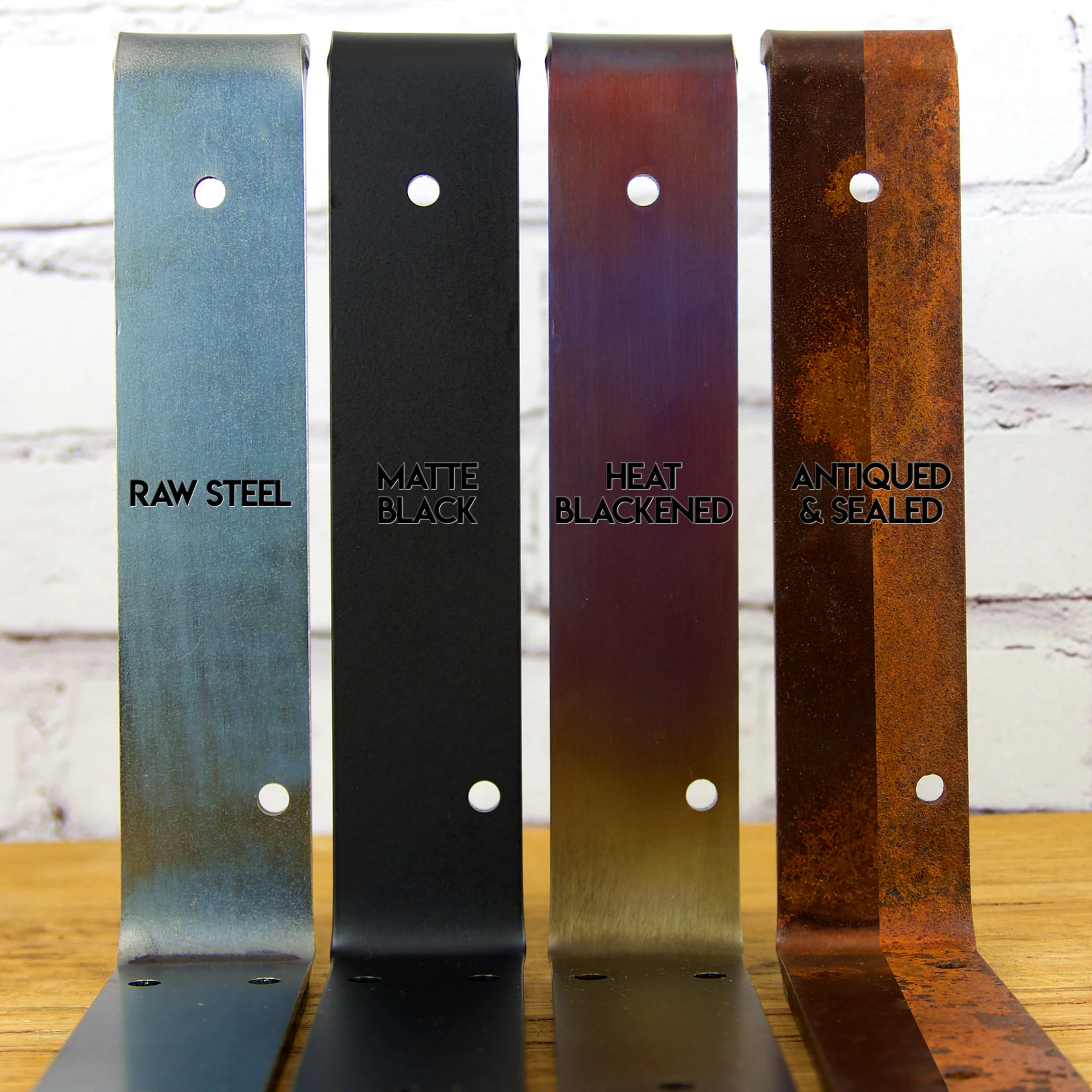

Finish Specifications:

Antiqued & Sealed - Penetrol.
Heat Blackened with Linseed Oil.
Matte Black.

Screw Options:

We supply a range of decorative traditional style black oxide screws and bolts to complement our industrial steel shelf brackets. Traditional bolts had square heads instead of hexagonal heads, whilst the screws had slotted heads instead of the modern Phillips' head.

If you are mounting into a stud or using a suitable wall plug, we suggest the round head screw, countersunk screw or lag bolt options:

https://littleanvil.com/nuts-bolts-screws/screw-wood-round-slotted-steel-black-oxide
https://littleanvil.com/nuts-bolts-screws/screw-wood-oval-countersunk-slotted-steel-black-oxide
https://littleanvil.com/nuts-bolts-screws/bolt-lag-square-steel-black-oxide

Little Anvil industrial steel bracket mounting holes suit our #12 screws and ¼" lag bolts. We recommend using the M6 Form C washers in conjunction with the lag bolts.

https://littleanvil.com/washers/washer-flat-steel-black-oxide

For the wall fixture, we'd suggest at least a 1-¾"  or 2" screw. For locating your shelving, the screw length will be dependant on your shelf thickness. If you are mounting the brackets onto masonry such as brick, concrete or block - we supply blackened head Dynabolts for both countersunk and non-countersunk holes that can be found here:

https://littleanvil.com/nuts-bolts-screws/dynabolt-blackened-head
