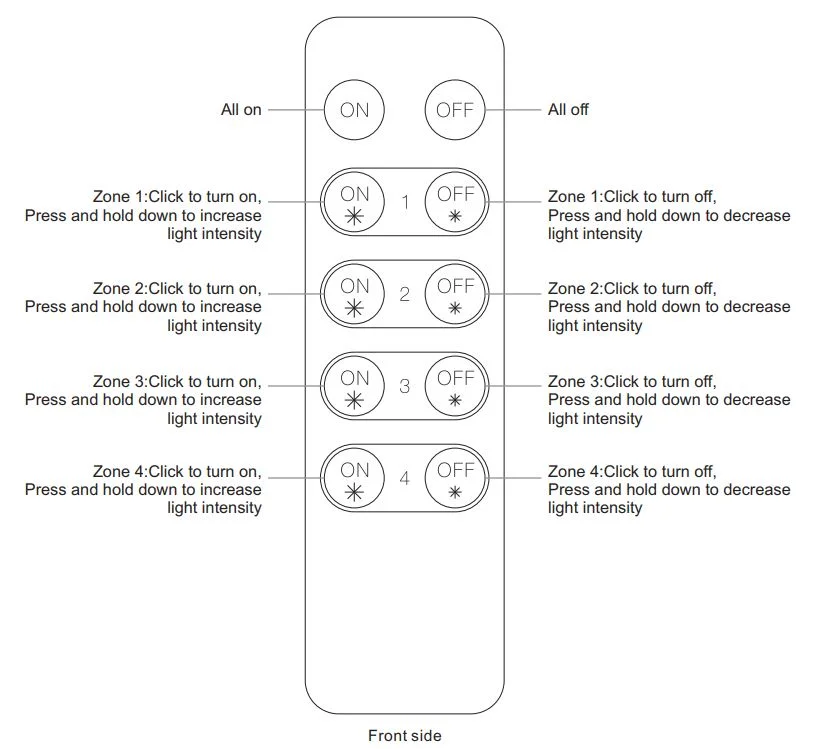

Remote Control Operation Detail Drawing
Remote Control Single Colour LED Wireless Dimmer 4 Zone
Remote Control Single Colour LED Wireless Dimmer 4 Zone
Remote Control Single Colour LED Wireless Dimmer 4 Zone
Remote Control Operation Detail Drawing

Remote Control | Single Colour LED Wireless Dimmer | 4 Zone

42.00

Product Description

This LA-LED remote control dimmer is the ideal solution for dimming single colour LED strip. Compatible with the LA-REC-1C8A receiver (sold separately), and all other LA-LED receivers in single colour mode. It is also supplied as standard equipment in our Timber Beam Chandelier and can therefore fully integrate into the rest of the LA-LED Wireless Control System. Zones may be defined as different features in a room such as under-cabinet and the kick-plate of a kitchen, or separate rooms, or both. (Note each zone requires at least one receiver.)

This is a high-quality remote control with tactile buttons and a velvet touch surface that resists finger marks. The buttons allow smooth dimming from 0.1%-100% flicker-free, and on-off functions for each zone. ‘All-on’ and ‘All-Off’ buttons are also provided to switch all zones on or off.

Wireless RF (Radio Frequency) control means line-of-sight is not required, and the lithium-ion battery ensures long life.

Pairing the remote to a receiver is a simple process of pressing the “Learning Key” on the receiver and then pressing the desired zone button. There is no limit to the number of receivers that the remote control can pair to. Each LA-LED receiver can pair with up to 8 wireless controllers or zones.

The LA-LED wireless control system is perfect for new projects and is also easily retrofitted into existing LED light installations to add new functionality and quality controllers.

Features:
Reliable dimming and switching functions of up to 4 zones separately, with the ability to pair unlimited receivers in each zone.
Separate on-off/dim-up dim-down buttons for each zone.
'All On' and 'All Off' buttons.
Smooth flicker-free dimming from 0.1% to 100%.
Velvet touch surface resists fingerprints.
Lithium-ion battery for long life. (2 years)
Wall mountable magnetic cradle.
Compatible with all LA-LED receivers running in single colour mode.

Quantity:
Add To Cart

Specifications:

SKU: LA-REM-4Z-DIM.
Indoor use only.
Output: RF (Radio Frequency).
Operating frequency: 868MHz.
Control distance: Up to 20 metres.
Control Zones: 4.
Battery: Lithium 3V (1 x CR2025).
Operating temperature: 0 to 40°.
Relative humidity: 8% to 80%.
IP Rating: IP20.
Dimensions: 137 x 39 x 12mm.
CE RoHS UL FCC TUV.

Downloads:

Installation instructions.
